OUTDOOR RTU
HW-AWS-S4
Four-channel RTU in an
outdoor enclosure

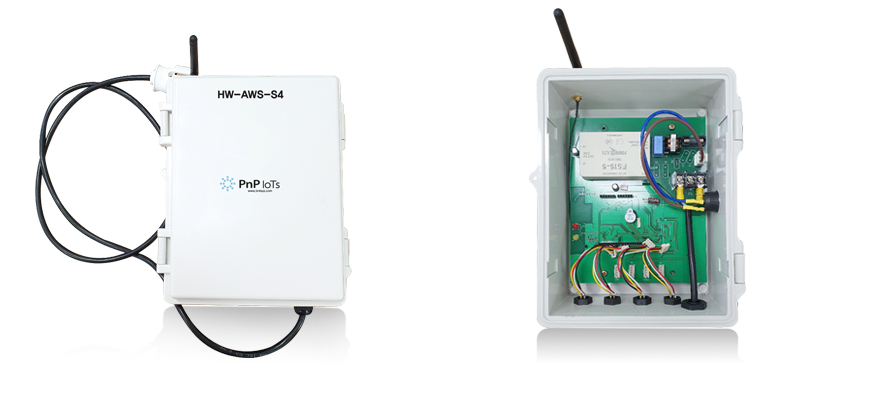

The power and communication circuits, touch screen and sensor connections are integrated in one outdoor enclosure. HW-AWS-S4 collects data from smart farms, factories and other field measurement sites and transfers it to a server.
Designed for the field
Essential outdoor functions in one enclosure
The integrated design simplifies installation while providing field access to sensor status and communication settings.
Outdoor Enclosure
Houses the RTU, power and communication components for field installation.
Four Sensor Channels
Connect temperature, humidity, CO₂, pressure, current and other field sensors through four ports.

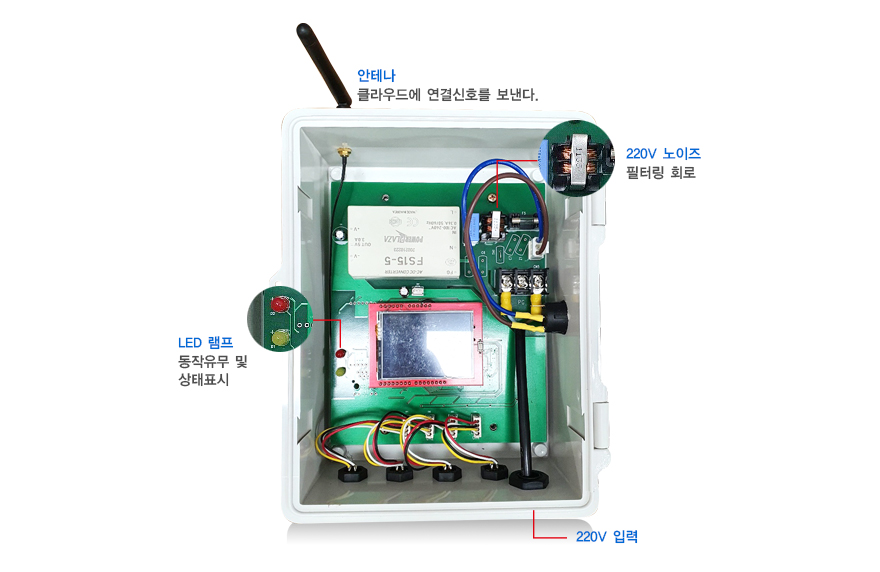

Power Noise Filtering
A 220 V AC input and filtering circuit are included for practical field power conditions.
Status & Communication
LED indicators show operation and threshold status while the external antenna provides wireless communication.
Product configuration
Main product configuration
- Model
- HW-AWS-S4
- Installation
- Integrated outdoor enclosure
- Sensor Channels
- 4 sensor and module connections
- Power
- 220 V AC input
- Power Circuit
- Noise filtering circuit
- User Interface
- Touch screen for status and configuration
- Status Indicators
- Operation and upper/lower threshold LEDs
- Wireless
- External antenna for server communication
- Sensor Support
- Environmental and industrial sensor modules
Water resistance depends on enclosure closure, cable glands and installation quality. Confirm the required ingress-protection conditions before ordering.
Data flow
Collect and transfer outdoor measurements
The enclosed RTU gathers field measurements and sends them to the selected monitoring server.
and industrial sensors
and measurement collection
and wireless transfer
analysis and alerts
Applications
For sites that require outdoor measurement
Tell us about your outdoor installation
We can review power, sensors, communication and required enclosure conditions.
