SMART FARM STANDARD RTU
FD-AWS-S8
KS X 3267-compatible
8-channel aluminum RTU

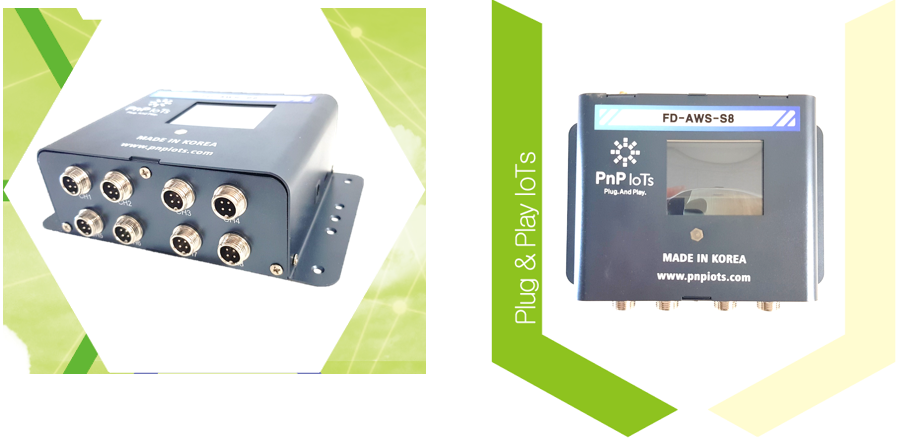

Connect smart-farm standard sensors and industrial devices, then collect and transfer their data to a server. FD-AWS-S8 combines a durable aluminum enclosure, eight RS-485 channels, Wi-Fi and a 2.4-inch touch screen.
Why FD-AWS-S8
Connect sensors and start collecting data
One RTU handles sensor connection, field status, communication settings and server transfer for smart farms and industrial IoT sites.
Standard Sensor Support
Integrates with F-series devices that support the Korean smart-farm standard KS X 3267.
Eight-Channel Expansion
Eight RS-485 circular connectors support temperature, humidity, CO₂, pH, PLC and other devices.
Field Configuration
Use the 2.4-inch touch screen to review sensor status and essential communication settings on site.
Server Integration
Transfer collected measurements through Wi-Fi to a customer server or monitoring platform.

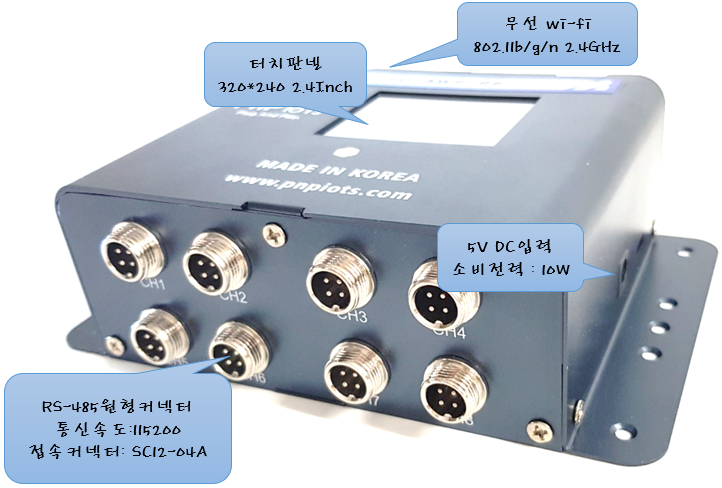

Product specification
Technical specifications
- Model
- FD-AWS-S8
- Standard
- Compatible with KS X 3267 smart-farm sensors
- Sensor Channels
- 8-channel RS-485 circular connectors
- Wireless
- Wi-Fi 802.11 b/g/n, 2.4 GHz
- Display
- 320 × 240, 2.4-inch touch screen
- Communication Speed
- Up to 115,200 bps
- Connector
- SC12-064A circular connector
- Power
- 5 V DC input, approximately 10 W
- Enclosure
- Aluminum housing with mounting brackets
Data flow
A direct path from field sensors to the server
Reduce intermediate equipment and deliver measurements where they are needed.
pH, PLC and more
and field configuration
2.4 GHz
analysis and alerts
Applications
Designed for a wide range of IoT sites
Need a sensor configuration for your site?
Tell us the sensor types, channel count and server interface you need.
